Material: galvanized steel wire or pvc coated wire mesh
Mesh Size: 10-100mm
Wire Diameter: 0.6mm-2.0mm
Roll Height: 0.5m, 0.75m, 1m, 2m
Roll Length: 25m, 35m ,50m
Packing Details: water proof paper inside, then PE film outside, or in pallet package.
Hexagonal wire mesh
1. Wire Dia: 0.45~3.0mm
2. Mesh: 3/8"~4"
3. Width: 1-2.5meter
Hexagonal wire mesh
Made of low carbon iron wire, galvanized or hot-dip zinc plated before or after weaving. Hexagonal wire netting is firm in structure and has flat surface. It is extensively used in INDUSTRIAL AND AGRICULTURAL CONSTRUCTUONS AS REINFORCEMNET AND FENCING. It is also used as Fence for Poultry Cage, Fishing, Garden and Children playground, etc.
Assortments Available:
Hexagonal wire mesh Electro Galvanized before Weaving
Hexagonal wire mesh Electro Galvanized After Weaving
Hexagonal wire mesh Hot Dipped Galvanized before Weaving
Hexagonal wire mesh Hot Dipped Galvanized after Weaving
Hexagonal wire mesh PVC Coated Before or After Weaving
Stainless Steel hexagonal wire mesh
PVC Coated Hexagonal Wire Netting/Chicken Wire Mesh for sale
Material:Low carbon steel wire, stainless steel wire
Weaving:straight twist, reverse twist, double-direction twist. Weaving before galvanized,
weaving after galvanized.
Finish : Electric galvanizing, hot-dip zinc plating, PVC coated.
Color:green, white, grey or other colors.
Characteristics:The structure is hard, surface is flat, it has the characteristics of corrosion-resisting
and oxidation-resisting.
Application: used in petroleum, construction , breeding industry and also used in rabbit , chicken fence .
Specification
| Hexagonal Wire mesh |
| Mesh | Min. Gal.v.G/SQ.M | Width | Wire Gauge (BWG) |
| Inch | mm | Tolerance(mm) | | | |
| 3/8" | 10mm | ±1.0 | 0.7mm - 145 | 2' - 1M | 27, 26, 25, 24, 23 |
| 1/2" | 13mm | ±1.5 | 0.7mm - 95 | 2' - 2M | 25, 24, 23, 22, 21 |
| 5/8" | 16mm | ±2.0 | 0.7mm - 70 | 2' - 2M | 27, 26, 25, 24, 23, 22 |
| 3/4" | 20mm | ±3.0 | 0.7mm - 55 | 2' - 2M | 25, 24, 23, 22, 21, 20, 19 |
| 1" | 25mm | ±3.0 | 0.9mm - 55 | 1' - 2M | 25, 24, 23, 22, 21, 20, 19, 18 |
| 1-1/4" | 31mm | ±4.0 | 9mm - 40 | 1' - 2M | 23, 22, 21, 20, 19, 18 |
| 1-1/2" | 40mm | ±5.0 | 1.0mm - 45 | 1' - 2M | 23, 22, 21, 20, 19, 18 |
| 2" | 50mm | ±6.0 | 1.2mm - 40 | 1' - 2M | 23, 22, 21, 20, 19, 18 |
| 2-1/2" | 65mm | ±7.0 | 1.0mm - 30 | 1' - 2M | 21, 20, 19, 18 |
| 3" | 75mm | ±8.0 | 1.4mm - 30 | 2' - 2M | 20, 19, 18, 17 |
| 4" | 100mm | ±8.0 | 1.6mm - 30 | 2' - 2M | 19, 18, 17, 16 |
http://www.ericwiremesh.com
|
|

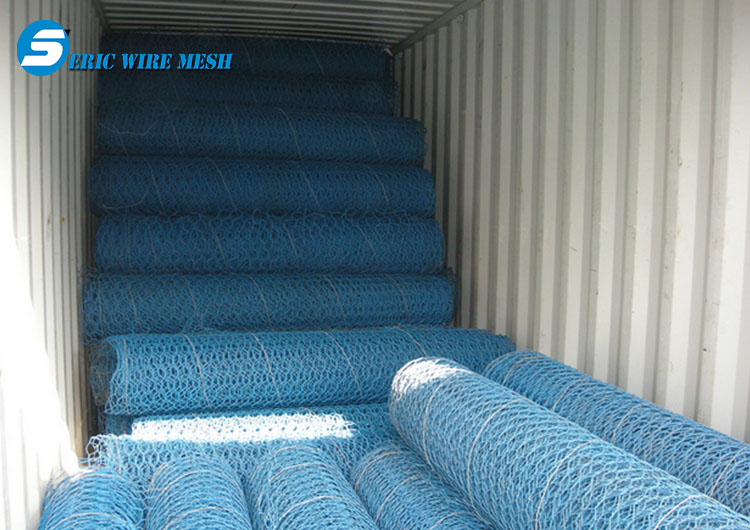

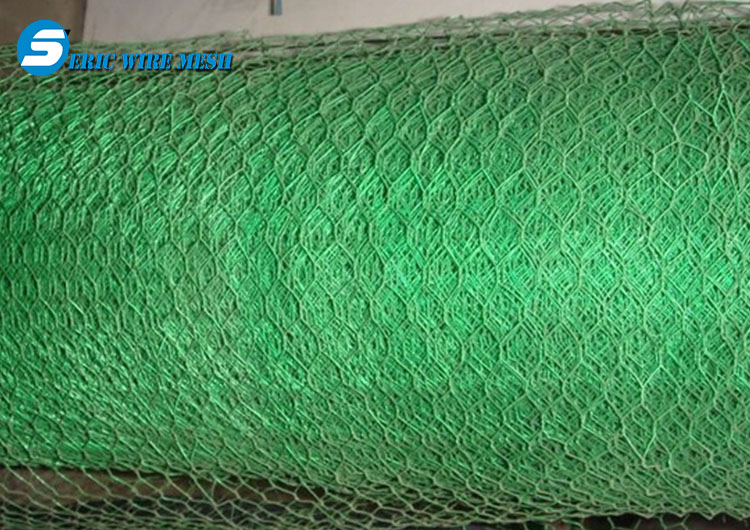

PVC Coated Hexagonal Wire Mesh for Chicken for Animal (ER-PC230) Images
|
